OVERVIEW

Hurricane Cleaner = Prevention of secondary pollution + Prevention of electrostatic

Our Hurricane Cleaner is a brush type cleaner that can remove non-adhesive foreign substances. It is comprised of a dust collector and a cleaner head with brush, air knife, and ionizer.

Conventional brush type dry cleaners were usually contaminated with foreign substances attached to the brush's surface during prolonged use.
However, we attach an air knife for brush cleaning to ensure consistent cleaning quality during prolonged use.
Conventional brush type dry cleaners tend to get static electricity produced by friction during operation.
So we adopted an ionizer exclusive for brush to prevent and remove electrostatic.
In addition, an additional ionizer has been installed in the cleaner front to remove electrostatic from the board.

	- Contact Type Cleaning System - Foreign substances removed using a brush - Weak adhesive as well as Non-adhesive foreign substances can be removed. - Dedicated Nozzle for Brush Cleaning only - Brush RPM Control System - Easy height adjustment and brush replacement - Compact look with profile structure


	typeConventional Type (Other brand)	Hurricane Cleaner

Conceptual view
substancesCleaning capability depending on the size of foreign substance	Particles bigger than 20~50㎛	moreParticles bigger than 10~15㎛
Ionizer quantity	2 (1: Pollutant, 1: Brush)	2 (1: Pollutant, 1: Brush)
Nozzle
Dust collecting chamber structure	Slit(Gap:6㎜)+Inverted triangle type	Slit(Gap:15㎜)+Streamline type
Facility characteristics	conditionJet Nozzle may cause a dead zone (i.e. blind spot) after a conditional brush cleaning. Unfit installation position of nozzle may cause foreign substances to fall on the cleaning zone. Limited dust collection due to a narrow Chamber Gap	Air Knife ensures no dead zone (i.e. blind spot) after brush cleaning. Changed nozzle position prevents foreign substances from falling on the cleaning zone. TheoryDust collection through increased Chamber Gap and Airfoil Theory

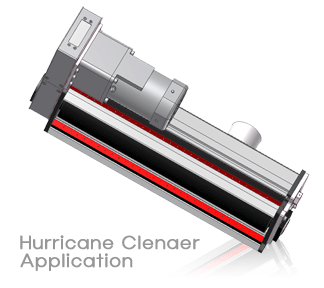

◈Hurricane Cleaner Conceptual View

◈Technical Specifications


No.	Item	Specification

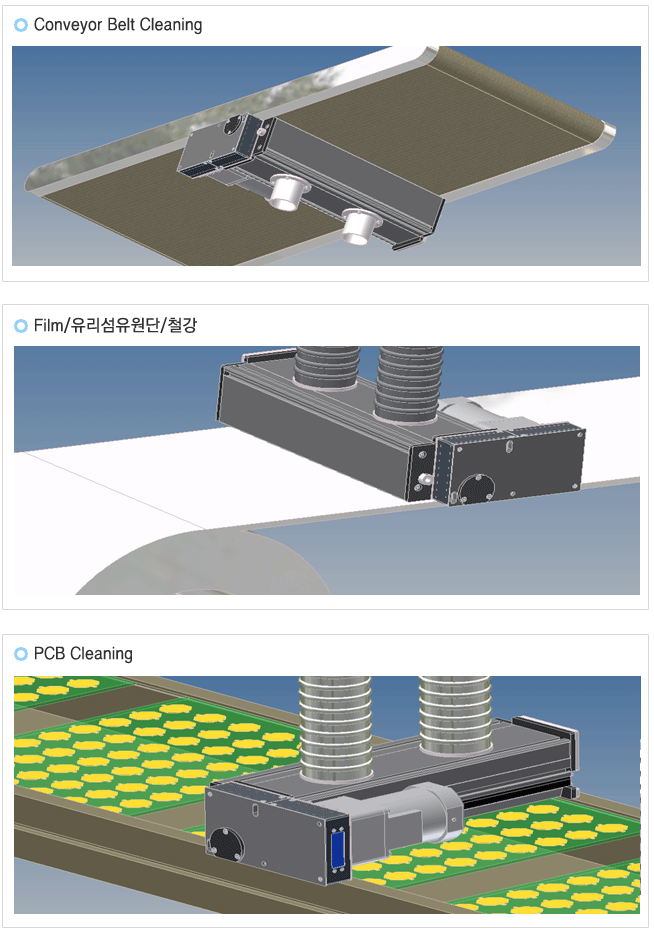

1	Application	Bobbin/LED Lamp Trim Process/Belt Conveyor/Before Steel Winding or Zinc Galvanizing/Printed Circuit Board/ Glass Fiber Material/Furniture, etc.
2	Effective width of cleaning (㎜)	75/150/255/305/455/610/760/910/1060/1220/1370 (Custom-made cleaner available on demand)
3	Dimensionc	(cleaning effective width+92㎜)×267㎜×168㎜ (Length×Width×Height)
4	Brush diameter	Φ60
5	Brush RPM	0 ~ 400rpm
6	Brush height	± 6㎜ adjustable
7	Ionizer	2
8	Nozzle type	High-efficiency air knife
9	Optional	Dust collector/Utility Parts/control system

◈ Hurricane Cleaner Outskirts Size

◈Cleaning Power Test


	Steel	LED lamp	Bobbin
Before foreign substances injection
foreign substances injection			Removal Test of foreign substances pressed and stuck in the bobbin in use
After cleaning
Test Conditions and Results	Foreign Substances Types : Fe Overlap: 1㎜ Brush RPM: 200 Result: No residual foreign substances	Foreign Substances Types : Aluminum Overlap: 1㎜ Brush RPM: 200 Result : No residual foreign substances * Adhesive foreign substance test	Foreign Substances Types :Mixed foreign substance Brush RPM: 200 Overlap: 1㎜ Result : substancesCan remove most foreign substances except the ones stuck fast on the bobbin.
